Widly use in Test and measurement equipment,OTDR etc.

Wavelength:1550nm,with Built-in Monitor PD.



Product features

  • Fabry-Perot Laser Distributed feedback laser Low threshold Current High Output power Built-in InGaAs monitor PD Wide temperature range operation



Specifications:

Absolute maximum ratings:

Storage temperature:-40~+85°C

Operating temperature:0~+60°C

LD forward Current:120mA（Max.）

Soldering temperature/time: 260/10 °C/S



Optcal&Electrical Characteristics:

Center wavelength:1550nm(Typ.)

Threshold Current:5mA(Min.)

Output power:40mW(Min.)

Operating Voltage:1.2V

Please contact us for more detail information regart to the product.

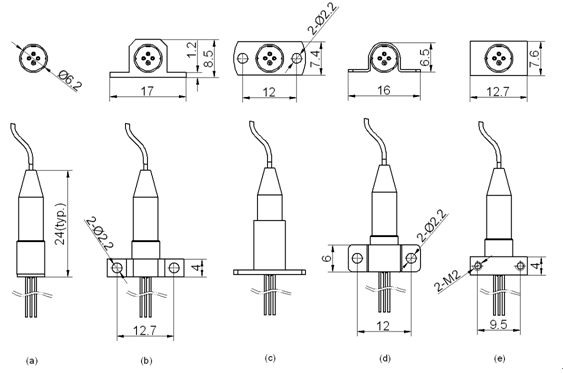

Dimension:

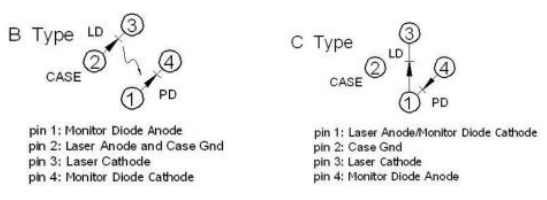

PIN:
