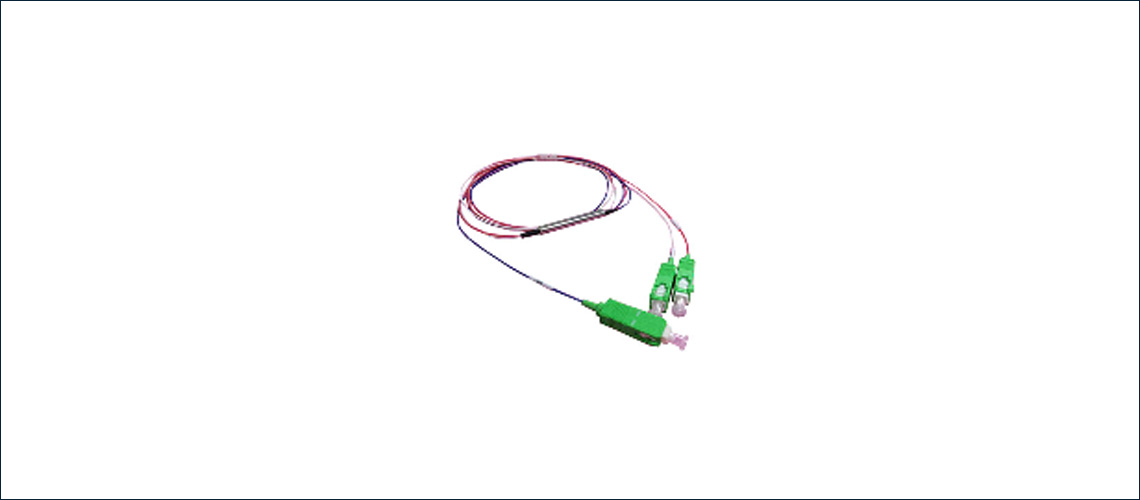

CWDM is mainly used in FTTx, CATV and other applications to obtain ROHS certification and provide customized services.

Product features

  • Low insert loss
  • High isolation Wide Temperature Range RoHs complaint



Specifications:

Absolut Parameter

Storage Temperature:-40~+85°C

Operating Temperature:-20~+70°C

Relative Storage Humidity: 95%

Maximum Output Power:300mW



Optical Parameter

Operating Wavelength Range:1260~1620nm

Channels:2

Channel Spacing:20nm

Paddband Range Min.:CW±6.5nm

Insertion Loss:

Reflection(1550nmRx):0.6~0.7dB

Passband(1610nmTx)0.5~0.6dB

Isolation: Tx-Com＞30dB，COM-Rx＞15dB

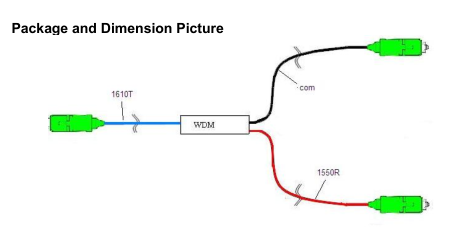

Configuration：
