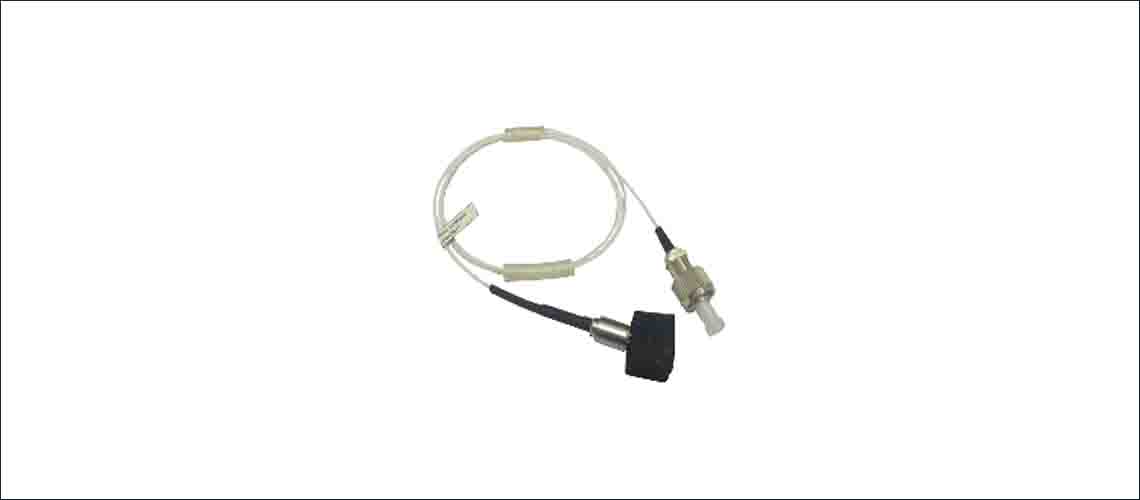

450nm Blue Violet Coaxial Laser Diode

Application: Electronic equipment,Projection home LED & Laser,projection professional LED & Laser,stage lighitng.



Product features

  • Typical emission wavelength 447nm High modulation bandwidth Muti-mode semiconductor laser Efficient radiation source for cw and pulsed oparation.



Specifications:

Optical power output(CW):5mW

Reverse voltage:2V

Operatings temperature:-10~+70 °C

Storage temperature:-40~+85 °C

Threshold current:22mA

Operating current:110mA

Operating voltage:5.3V



Dimension:

PIN:
