Application:Laser projection/laser show/Biomedical application/Holography/Metrology



Product features

  • Typ.Emission wavelength 520nm Efficient radiation source for CW and plused operation single transverse mode semiconductor laser High modulation bandwidth Laser diode isolated against package



Specifications:

Operating Current:200mA(Max)

Operating Temperature:+0~60 °C

Storage Temperature:-40~+85°C

Reverse Voltage:2V(Max)

soldering temperature max 10sec.:260°C

Emission Wavelength:515~530nm

Threshold Current:45mA(typ.)

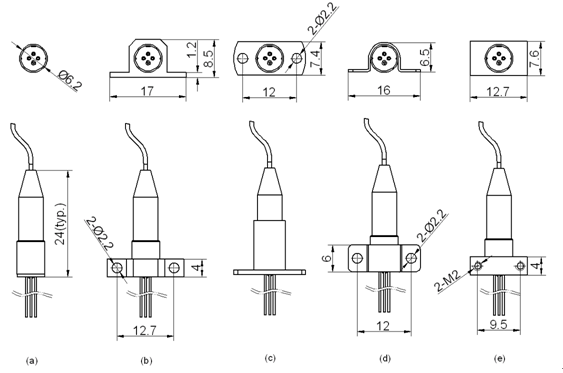

Dimension:



PIN:
