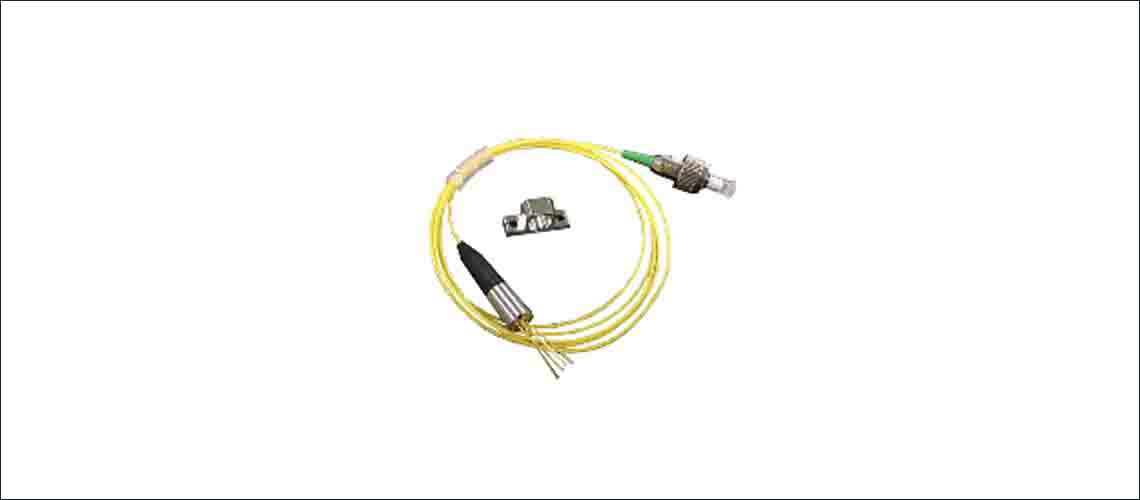

635nm visible red laser coaxial laser diode

Application：laser pointer/optical leveler/laser moduley/metrology



Product features

  • Visible light output:635nm Optical power output:1~10mW Built-in Photo diode for monitoring laser diode



Specifications:

Storage Temperature:-20~+85°C

Operating temperature:-10~+50°C

Optical output pwoer:1~10mW

Condition P=5mW:

Laser diode Reverse Voltage:2V

Photodiode reverse voltage:30V

Thereshold current:30mA(typ.) 50mA(Max.)

Operating current:80mA(typ.) 100mA(Max.)

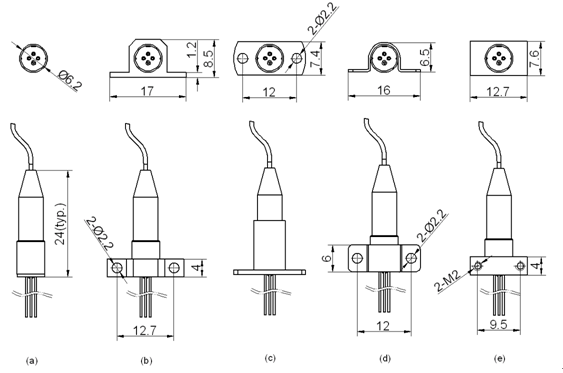

Dimension:



PIN:
